1.5A double row 10pin male and female magnetic connector pogo pin 2.0mm pitch

Brand Name : UPE

Model Number : RM-1222-A10-12 /RM-1222-B10-22

Certification : ISO9002

Place of Origin : China

MOQ : 5000

Price : $1-$5

Payment Terms : T/T

Supply Ability : 5KPCS/Day

Delivery Time : 12-15 working days

Packaging Details : PE bags

Name : Magnetic Connector

Pitch : 2.0mm

Pin number : Double row 10P

Material : Brass,N52,HTN

Spring force : 40g±10g

Working storke : 0.8mm

Current : 1.5A

Volatge : 12V

Mechanical life : 10000 cycle Min.

Contact resistance : 50mΩ Max (PIN)

Contact Now

1.5A double row 10pin male and female magnetic connector pogo pin 2.0mm pitch.


UPE – Premium Magnetic Connectors | RoHS & REACH Compliant | 100% Tested Reliability

UPE is a trusted global manufacturer of high-performance magnetic connectors and magnetic cable connectors, engineered for durability, safety, and seamless connectivity. Our products meet the strictest industry standards, ensuring compatibility with consumer electronics, medical devices, industrial equipment, and IoT applications.


✅ Full Compliance – All materials strictly adhere to RoHS & REACH environmental and safety regulations.
✅ 100% Quality Tested – Every unit undergoes rigorous short & open circuit testing for guaranteed reliability.
✅ Superior Magnetic Performance – Strong retention, corrosion resistance, and long-term durability.
✅ Custom Solutions – Tailored designs to fit your exact mechanical, electrical, and environmental needs.


Material:

Pogo Pin:Brass C6801 Plating Au 0.125um
Turning Parts:Brass Plating Au 0.125um
Housing:Black HTN UL94V-0
Magnet: N52 NdFeB Plating Ni Cu Ni


Mechanical:

-Contact force:40g±10g at 0.8mm working storke

-Life test:10,000cycle


Electrical:

-Rated voltage:DC12V;Rated voltage:1.5AMax.

-Contact Resistance: ≤ 50mΩ (milliohms) per pin (maximum)


Environmental performance:

-Operation Temperature: -25℃ to +60℃

-Environmental Test: Salt Spray 24 hours,


10Pin Magnetic Connectors Parameter:

Name

Magnetic Connector

Type

Male/Female

Pin

10pin

Color

Black

Pogo pin

Brass C6801 Plating Au 0.125um

Turning Parts

Brass Plating Au 0.125um

Spring force

40g±10g,at 0.8mm working storke.

Mechanical life

10000 cycle Min..

Current

1.5AMax

Voltage

DC 12V

Contact resistance

50mΩ Max (PIN).

Operation Temperature

-25℃to +60℃

Salt spray test

24H

Certification

ROHS or REACH compliant product

Test

100% open and short test

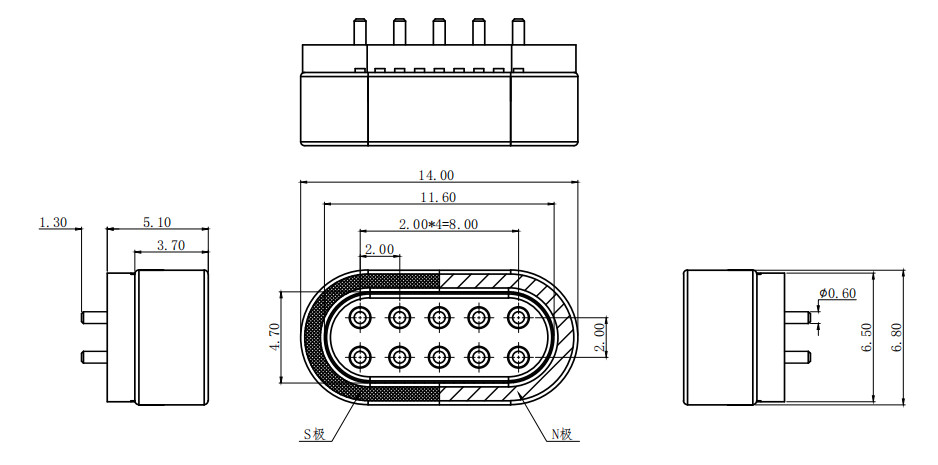

Male Magnetic Connector Technical Drawing

1.5A double row 10pin male and female magnetic connector pogo pin 2.0mm pitch


Female Magnetic Connector Technical Drawing

1.5A double row 10pin male and female magnetic connector pogo pin 2.0mm pitch


Exploded View of Male Fmale Magnetic Connector:

1.5A double row 10pin male and female magnetic connector pogo pin 2.0mm pitch 1.5A double row 10pin male and female magnetic connector pogo pin 2.0mm pitch


Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission


Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
