2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal

Brand Name : UPE

Model Number : RM-100-A04-51 /RM-100-B04-61

Certification : ISO9002

Place of Origin : China

MOQ : 5000

Price : $1-$5

Payment Terms : T/T

Supply Ability : 5KPCS/Day

Delivery Time : 12-15 working days

Packaging Details : PE bags

Name : Magnetic Connectors

Pitch : 2.2mm

Pin Number : 4Pin

Material : Brass,NdFeB,HTN

Spring force : 80g±20g

Working storke : 1.0mm

Current : 3.0A

Volatge : 12V

Operation Temperature : -25℃ to +80℃

Contact resistance : 50mΩ Max (PIN)

Contact Now

2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal.


UPE – Professional Magnetic Connector & Cable Manufacturer | Custom Solutions

UPE is a trusted leader in designing and manufacturing high-performance magnetic connectors and magnetic cable connectors, delivering innovative, reliable, and customizable connectivity solutions for a wide range of industries.


To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.


Materials:
-Housing: Black HTN UL94V-0

-Pogo Pin: Brass C6801 Plating Au 0.125um
-Female pin: Brass C6801 Plating Au 0.125um
-Magnet: N52 NdFeB Plating Ni Cu Ni


Mechanical:

-Contact force:80g±20g at 1.0mm working storke

-Full storke: 1.1mm

-Male and female adsorption Life test: 10,000cycle


Electrical:

-Rated voltage:DC12V; Rated voltage: 3AMax.

-Contact resistance of spring pin: 50 milliohm Max.


Environmental performance:

-Operation Temperature: -25℃ to +80℃

-Environmental Test: Salt Spray 24 hours


4Pin Male Magnetic  Connectors & Female Magnetic Connector Parameter:

Name

Magnetic Connector

Type

Male/Female

Pin

4pin

Pitch

2.2mm

Color

Black

Pogo pin

Brass C6801 Plating Au 0.125um

Female pin

Brass C6801 Plating Au 0.125um

Housing

Black HTN UL94V-0

Magnet

N52 NdFeB Plating Ni Cu Ni

Spring force

8020g,at 1.0mm working storke.

Mechanical life

10000 cycle Min..

Current

3.0AMax

Voltage

DC12V

Contact resistance

50mΩ Max (PIN).

Operation Temperature

25℃to +80℃

Salt spray test

24H

Certification

ROHS or REACH compliant product

Test

100% open and short test

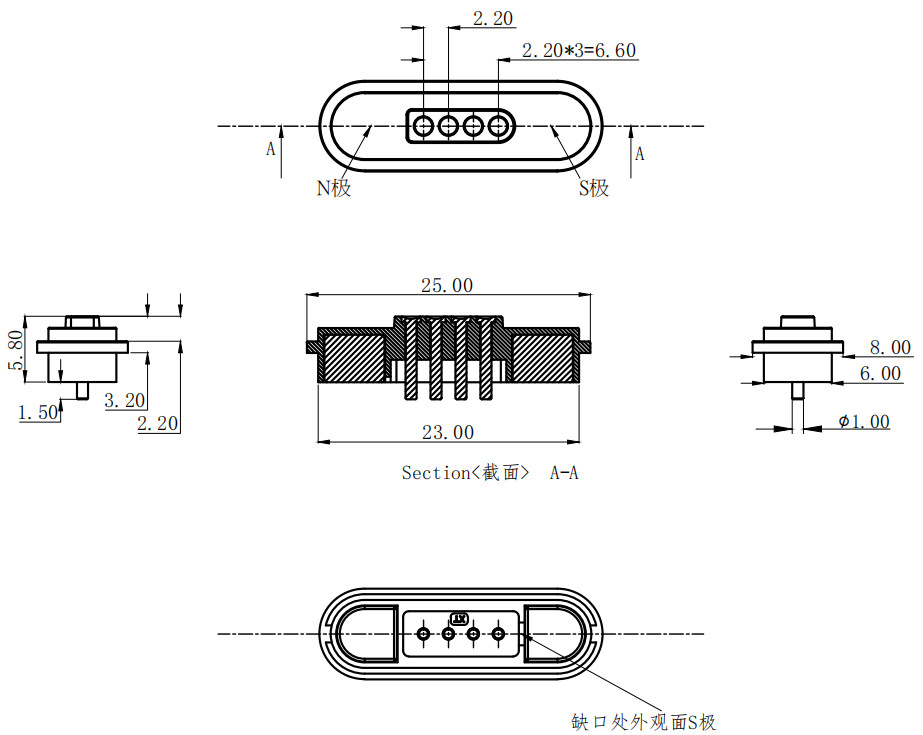

4Pin Male Magnetic  Connector Technical Drawing

2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal

2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal


4Pin Female Magnetic Connector Technical Drawing

2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal

2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal


Advantages of Magnetic Connector:

1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.

2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).

3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.

4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.


Magnetic connector products application:

2.2MM Pitch 4Pin Magnetic Connector 3A Male and Female DC Power Charger Terminal

Why UPE shall be your partner?

Premium Quality – Durable, high-efficiency magnetic connectors for secure connections.
Custom Solutions – Tailored designs to meet specific application requirements.
Innovative Technology – Advanced magnetic coupling for easy, safe, and quick connections.
Wide Applications – Ideal for consumer electronics, medical devices, industrial equipment, and more.
✔ Reliable Performance – Engineered for longevity and consistent connectivity.


How to Place Your Magnetic Cable Connector Order with UPE

1. Submit Your Requirements
Provide details such as:

.Connector type (power, data, hybrid, waterproof, etc.)

.Voltage & current ratings

.Cable length & specifications

.Magnetic polarity & alignment preferences

.Quantity & lead time

Special requirements (IP rating, shielding, certifications, etc.)

. Option 1: Fill out our RFQ (Request for Quote) Form on our website.
. Option 2: Email your specs directly to sunion@upetech.net (or your designated contact).


2. Receive a Custom Quote
Our engineering team will review your requirements.

We’ll provide a competitive quote, including:Pricing/Lead time/Prototyping options (if needed)


3. Approve & Confirm Order
Once the quote is approved, we’ll finalize the design & production schedule.

For new designs, we may offer 3D models or samples for testing.


4. Production & Quality Assurance
UPE manufactures your order with strict quality control checks.

We can provide test reports & certifications upon request.


5. Fast Delivery & Support
Your order ships via your preferred logistics method (DHL, FedEx, sea freight, etc.).

Our team remains available for technical support & future orders.


Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.


Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).


Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
