80g spring force 3pin male and female magnetic charging connector with 2.8mm pitch.
UPE – Professional Magnetic Connector & Cable Manufacturer | Custom Solutions
UPE is a trusted leader in designing and manufacturing high-performance magnetic connectors and magnetic cable connectors, delivering innovative, reliable, and customizable connectivity solutions for a wide range of industries.
To ensure contact mechanical life,NEVER compress pogo-pin OVER defined working stroke indrawing,which may damage the inside spring.
Materials:
-Housing: Black HTN UL94V-0
-Pogo Pin: Brass C6801 Plating Au 0.125um
-Female pin: Brass C6801 Plating Au 0.125um
-Magnet: N52 NdFeB Plating Ni Cu Ni
Mechanical:
-Contact force:80g±20g at 1.1mm working storke
-Male and female adsorption Life test: 10,000cycle
Electrical:
-Rated voltage:DC12V; Rated voltage: 3AMax.
-Contact resistance of spring pin: 50 milliohm Max.
Environmental performance:
-Operation Temperature: -25℃ to +80℃
-Environmental Test: Salt Spray 24 hours
3Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:
| Name | Magnetic Connector |
| Type | Male/Female |
| Pin | 3pin |
| Pitch | 2.8mm |
| Color | Black |
| Pogo pin | Brass C6801 Plating Au 0.125um |
| Female pin | Brass C6801 Plating Au 0.125um |
| Housing | Black HTN UL94V-0 |
| Magnet | N52 NdFeB Plating Ni Cu Ni |
| Spring force | 80g±20g,at 1.0mm working storke. |
| Mechanical life | 10000 cycle Min.. |
| Current | 3.0AMax |
| Voltage | DC12V |
| Contact resistance | 50mΩ Max (PIN). |
| Operation Temperature | 25℃to +80℃ |
| Salt spray test | 24H |
| Certification | ROHS or REACH compliant product |
| Test | 100% open and short test |

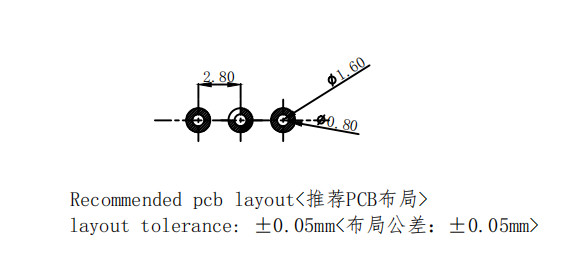

3Pin Male Magnetic Connector Technical Drawing
3Pin Female Magnetic Connector Technical Drawing
Advantages of Magnetic Connector:
1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.
2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).
3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.
4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.
Magnetic connector products application:
Why UPE shall be your partner?
✔ Premium Quality – Durable, high-efficiency magnetic connectors for secure connections.
✔ Custom Solutions – Tailored designs to meet specific application requirements.
✔ Innovative Technology – Advanced magnetic coupling for easy, safe, and quick connections.
✔ Wide Applications – Ideal for consumer electronics, medical devices, industrial equipment, and more.
✔ Reliable Performance – Engineered for longevity and consistent connectivity.
How to Place Your Magnetic Cable Connector Order with UPE
1. Submit Your Requirements
Contact our sales team via:
Email: [union@upetech.net]
Phone: [+86 13434524996]
Online Form: [www.pogopinsconnector.com]
Provide details:
✔ Application (e.g., medical, automotive, consumer electronics)
✔ Connector type (e.g., magnetic pogo pin, charging cable)
✔ Specifications (voltage, current, size, waterproof rating, etc.)
✔ Quantity & lead time
2. Get a Custom Solution (If Needed)
Our engineers will review your needs and propose a custom design (if required).
We’ll share 3D models, samples, or technical drawings for approval.
Payment Term:
50% Deposit (Paid upfront): Covers production costs (materials, labor).
50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.
Payment method:
T/T (Bank Transfer),PayPal ,OCBC Bank
Recommendation:
Use PayPal for samples (safer).
Use T/T for bulk orders (lower fees).
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Shipping
|
|
80g spring force 3pin male and female magnetic charging connector with 2.8mm pitch Images
|
